Elmo驱动器Platinum系列
伺服控制新时代4轴微型“即用型”运动控制系统Composer2，软件在环强大的驱动能力4X 5000W 伺服驱动器 & 4轴运动控制器
产品详情
Platinum Solo Quartet 是一款超小型 4 轴运动控制系统，具有先进的多轴控制、集成的 4 x 5kW 强大伺服驱动器以及先进的安全和网络功能。 Platinum Solo Quartet 带有易于连接的接口，简化了与实际应用的连接操作，是一个完整的运动解决方案。
Platinum 系列旨在满足 OEM 设计师对更智能、更小、更快、具有更高功能性和易用性的伺服系统不断变化的需求。 Platinum 驱动器旨在通过卓越的运动控制和更高的安全性来帮助机器和机器人制造商创造更好的机器。
Platinum solo Quartet亮点
4X 5000W 伺服驱动智能模组
4 轴运动控制器
“即用型”解决方案
高精度伺服控制
高级安全功能 (STO)
丰富的 I/O 支持
创新的Platinum线芯
超快速 EtherCAT 网络
Platinum 系列亮点
以功能安全性著称的伺服驱动器，通过EtherCAT (FSoE)认证
更快的数据处理能力，增强的处理能力，更高带宽和精度
增加了控制算法
更快速的循环时间，更高协同性，抖动几乎可忽略不计，近乎零延迟。
更大内存，实时记录
增加了反馈支持：最多三种反馈，或2种绝对值反馈

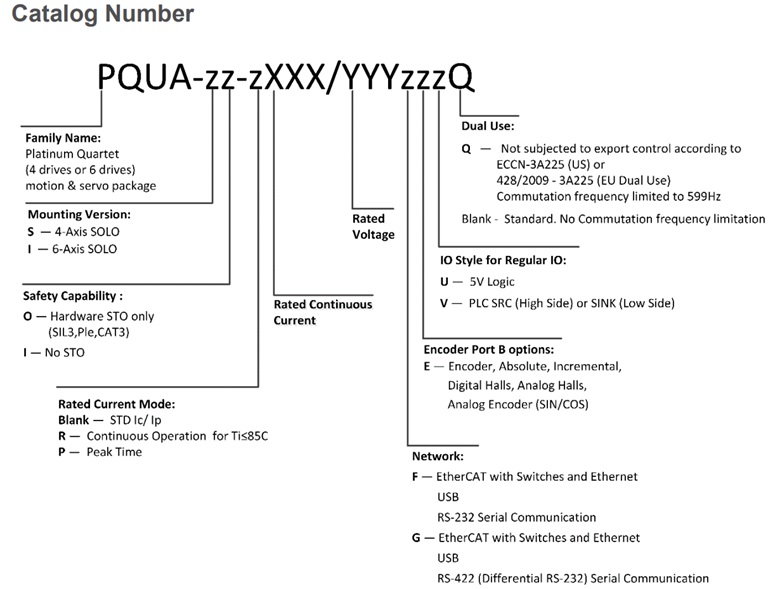

| Feature | Units | 1/100 | 3/100 | 6/100 | 10/100 | 15/100 | 25/100 | P50/100 |
| Minimum supply voltage | VDC | 10 | ||||||
| Nominal supply voltage | VDC | 85 | ||||||
| Maximum supply voltage | VDC | 95 | ||||||
| Maximum continuous power output | W | 70 | 220 | 440 | 735 | 1100 | 2000 | 2000 |
| Efficiency at rated power (at nominal conditions) | % | > 99 | ||||||
| Maximum output voltage | Up to 96% of DC bus voltage | |||||||
| Amplitude sinusoidal/DC continuous current | A | 1 | 3 | 6 | 10 | 15 | 25 | 25 |
| Sinusoidal continuous RMS current limit (Ic) | A | 0.7 | 2.1 | 4.2 | 7.1 | 10 | 17.7 | 17.7 |
| Peak current limit | A | 2 x Ic | ||||||
| Peak Time | Secs | Standard 3secs | Up to 30secs | |||||
| Feature | Units | 3/200 | 6/200 | 10/200 |
| Minimum supply voltage | VDC | 20 | ||
| Nominal supply voltage | VDC | 170 | ||
| Maximum supply voltage | VDC | 195 | ||
| Maximum continuous power output | W | 440 | 880 | 1450 |
| Efficiency at rated power (at nominal conditions) | % | > 99 | ||
| Maximum output voltage | Up to 96% of DC bus voltage | |||
| Amplitude sinusoidal/DC continuous current | A | 1 | 6 | 10 |
| Sinusoidal continuous RMS current limit (Ic) | A | 2.1 | 4.2 | 7.1 |
Peak current limit | A | 2 x Ic | ||
| Feature | Units | R15/200 | R35/200 |
| Minimum supply voltage | VDC | 20 | |
| Nominal supply voltage | VDC | 170 | |
| Maximum supply voltage | VDC | 195 | |
| Maximum continuous power output | W | 2200 | 5100 |
| Efficiency at rated power (at nominal conditions) | % | > 99 | |
| Maximum output voltage | Up to 96% of DC bus voltage | ||
| Amplitude sinusoidal/DC continuous current | A | 15 | 35 |
| Sinusoidal continuous RMS current limit (Ic) | A | 10.6 | 24.8 |
Peak current limit | A | Ic |
Control Supply
Feature | Units | Units | Details |
Control supply input voltage | V | Isolated DC source: 14 to 95V | |
24V Control supply input power consumption | Without encoder | W | ≤4 |
With 4 x 300mA encoders (1.2A@5VE) | W | ≤11.5 | |
Encoder Supply
| Feature | Details | ||
| 5V supply | 5V ±5% Total current capability of 1200mA. | ||
| 5VE per axis | Current per pin | Total Current per axis | |
Pin 1 | 200mA | 300mA | |
| Pin 2 | 200mA | ||
