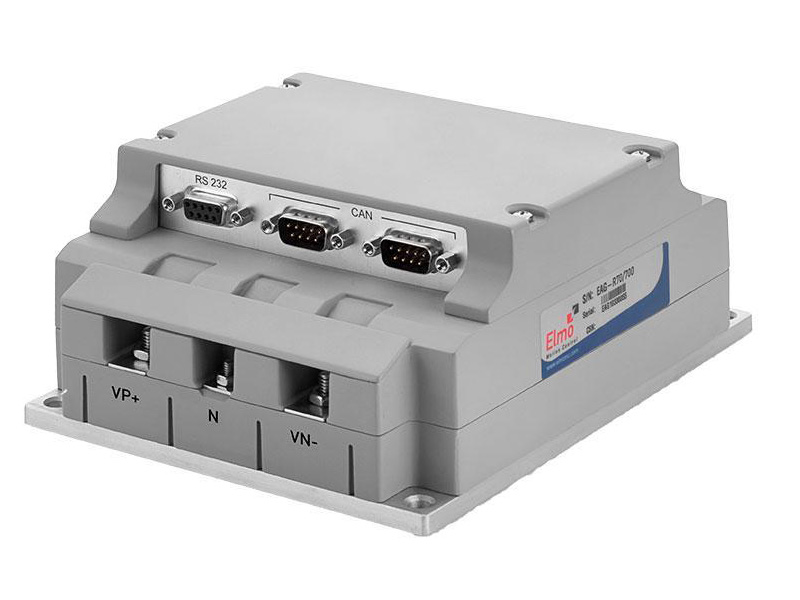

Eagle高压数字伺服驱动器 EagleHV系列数字伺服驱动器具有高弹性，旨在提供最高密度的功率和智能。EagleHV在紧凑的封装中提供高达65千瓦的连续功率。
产品详情
The digital drives are based on Elmo’s advanced SimplIQ motion control technology. They operate from a DC power source in current, velocity, position and advanced position modes, in conjunction with a permanent-magnet synchronous brushless motor, DC brush motor, linear motor or voice coil. They are designed for use with any type of sinusoidal and trapezoidal commutation, with vector control. The Eagle HV can operate as a stand-alone device or as part of a multi-axis system in a distributed configuration on a real-time network.
The drives are easily set up and tuned using Elmo’s Composer software tools. This Windows-based application enables users to quickly and simply configure the servo drive for optimal use with their motor. The Eagle HV, as part of the ExtrIQ product line, is fully programmable with Elmo’s Composer motion control language.
Power to the drives is provided by a DC power source (not included with the Eagle HV).
Mating Power Supply Elephant.
Eagle HV Highlights:
Ready to use in extreme conditions
SimplIQ core motion control technology
Ultra-high qualitative power density
Panel mounting
Top efficiency
Supports a wide variety of feedbacks
Vector control sinusoidal commutation
Advanced filtering and velocity gain scheduling for enhanced dynamic performance

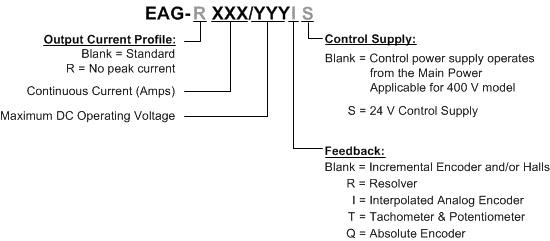

Feature | Units | 50/400 | R100/400 |
|---|---|---|---|
Minimum supply voltage | VDC | For S type*: 50 | |
Nominal supply voltage | VDC | 325 | |
Maximum supply voltage | VDC | 400 | |
Maximum continuous power output | kW | 16 | 33 |
Efficiency at rated power (at nominal conditions) | % | > 98 | |
Auxiliary supply option, for S drives | VDC | 18 to 30 | |
Auxiliary power supply (external option) | VA | 7 | |
Continuous current limit (Ic) amplitude of | A | 50 | 100 |
Sinusoidal continuous RMS current limit (Ic) | A | 35 | 71 |
Peak current limit | A | 100 | No peak |
Weight | kg (oz) | 1.623 kg (57.25 oz) | |
Dimensions | mm (in) | 180 x 142 x 75.2 (7.08" x 5.59" x 2.96") | |
Digital in/Digital out/ Analog in | 6/4/1 | ||
Mounting method | Panel / Wall Mounted | ||
Note: This model will not be used in new designs of the drive.
Feature | Units | 35/700 | R70/700 | R100/700 |
|---|---|---|---|---|
Minimum supply voltage | VDC | For S type*: 100 | ||
Nominal supply voltage | VDC | 560 for 400 VAC | ||
Maximum supply voltage | VDC | 700 | ||
Maximum continuous power output | kW | 20 | 40 | 57 |
Efficiency at rated power (at nominal conditions) | % | > 98 | ||
Auxiliary supply option, for S drives | VDC | 18 to 30 | ||
Auxiliary power supply (external option) | VA | 7 | ||
Continuous current limit (Ic) amplitude of | A | 35 | 70 | 100 |
Sinusoidal continuous RMS current limit (Ic) | A | 25 | 50 | 71 |
Peak current limit | A | 70 | No peak | No peak |
Weight | kg (oz) | 1.623 kg (57.25 oz) | ||
Dimensions | mm (in) | 180 x 142 x 75.2 (7.08" x 5.59" x 2.96") | ||
Digital in/Digital out/ Analog in | 6/4/1 | |||
Mounting method | Panel / Wall Mounted | |||
Feature | Units | 35/800 | R70/800 | R100/800 |
|---|---|---|---|---|
Minimum supply voltage | VDC | For S type*: 100 | ||
Nominal supply voltage | VDC | 560 for 400 VAC | ||
Maximum supply voltage | VDC | 780 | ||
Maximum continuous power output | kW | 22 | 45 | 65 |
Efficiency at rated power (at nominal conditions) | % | > 98 | ||
Auxiliary supply option, for S drives | VDC | 18 to 30 | ||
Auxiliary power supply (external option) | VA | 7 | ||
Continuous current limit (Ic) amplitude | A | 35 | 70 | 100 |
Sinusoidal continuous RMS current limit (Ic) | A | 25 | 50 | 71 |
Peak current limit | A | 70 | No peak | No peak |
Weight | kg (oz) | 1.623 kg (57.25 oz) | ||
Dimensions | mm (in) | 180 x 142 x 75.2 (7.08" x 5.59" x 2.96") | ||
Digital in/Digital out/ Analog in | 6/4/1 | |||
Mounting method | Panel / Wall Mounted | |||
