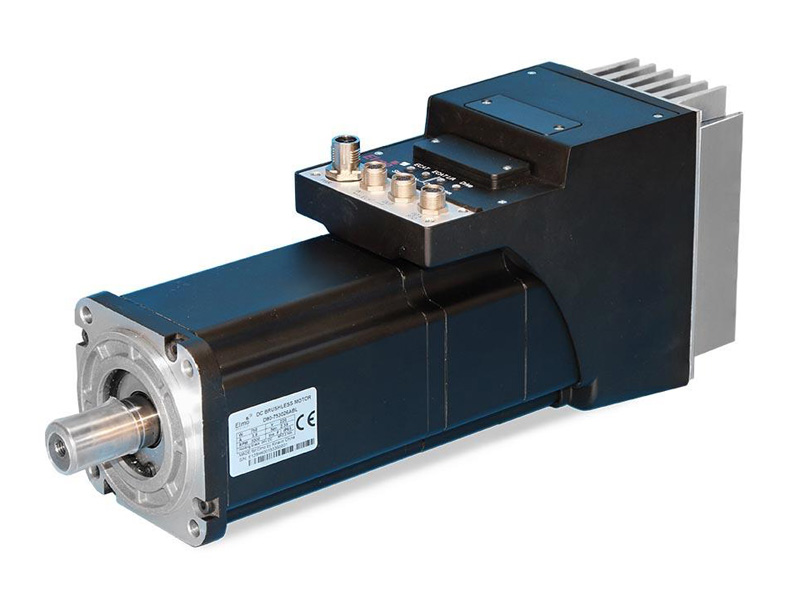

Gold-Duet-80电机：

Gold Duet是Elmo的顶级集成伺服电机系列，配备内置Gold系列Elmo驱动器。

该系列中添加的最新版本可以使用高性能的80和110帧伺服电机。Duets中的Gold系列数字伺服驱动器具有很高的弹性，旨在提供最高密度的功率和智能。新款Gold Duet以紧凑的高品质包装提供高功率。

额定扭矩：高达6.0Nm（1880W）

直接从高达480AC的整流交流电运行

无需隔离变压器

峰值功率高达3kW

高级EtherCAT和CANopen网络

Parameter		750W, 400V	1000W, 400V	750W, 800V	1000W, 800V
Motor
Rated Rotation Speed	rev/min	3000	3000	3000	3000
Rated Torque	Nm	2.39	3.18	2.39	3.18
Maximum Peak Torque	Nm	7.17	9.54	7.17	9.54
Rotor Inertia	x10-4 kgm2	1.414	1.85	TBD	1.85
Rotor Inertia with brake	x10-4 kgm2	1.385	1.862	1.385	1.862
Electrical
Min DC bus for Rated Speed @ 3XRated Torque	VDC	50	50	95	95
Minimum Supply Voltage	VDC	50	50	95	95
Maximum Supply Voltage	VDC	396	396	780	780
DC Bus Input Current @Vbus At Rated Speed & Rated Torque	A/V	2.25A@320V	3.0A@320V	1.28A@560V	1.7A@560V
VL , Control & Logic Supply	VDC	See Table on Auxiliary Supply Input Voltage (VL)
Mechanical
Weight W/O Brake	Kg	3.70	4.30	3.70	4.30
Weight With brake	Kg	4.40	5.00	4.40	5.00
Dimensions W/O Brake	mm (in)	261.7x119.2x86.2 (10.30x4.69x3.39)	281.7x119.2x86.2 (11.09x4.69x3.39)	261.7x119.2x86.2 (10.30x4.69x3.39)	281.7x119.2x86.2 (11.09x4.69x3.39)
Dimensions With Brake	mm (in)	311.8x119.2x86.2 (12.28x4.69x3.39)	331.8x119.2x86.2 (13.06x4.69x3.39)	311.8x119.2x86.2 (12.28x4.69x3.39)	331.8x119.2x86.2 (13.06x4.69x3.39)
Encoders		Options Single turn 20 bits Absolute Encoder, N option. Multi-turn, 20 bits single turn + 16 bits multi-turn, including battery, T option Quadrature 2500 ppr + commutation signals (Hall signals), E option Other resolution on request
Structure		Totally enclosed, non-ventilated
Protection level		IP65

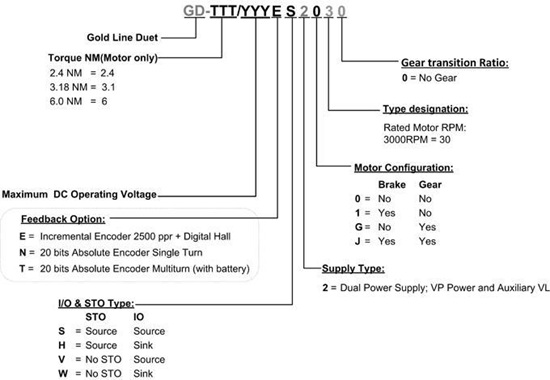

Gold-Duet-80电机(图1)
