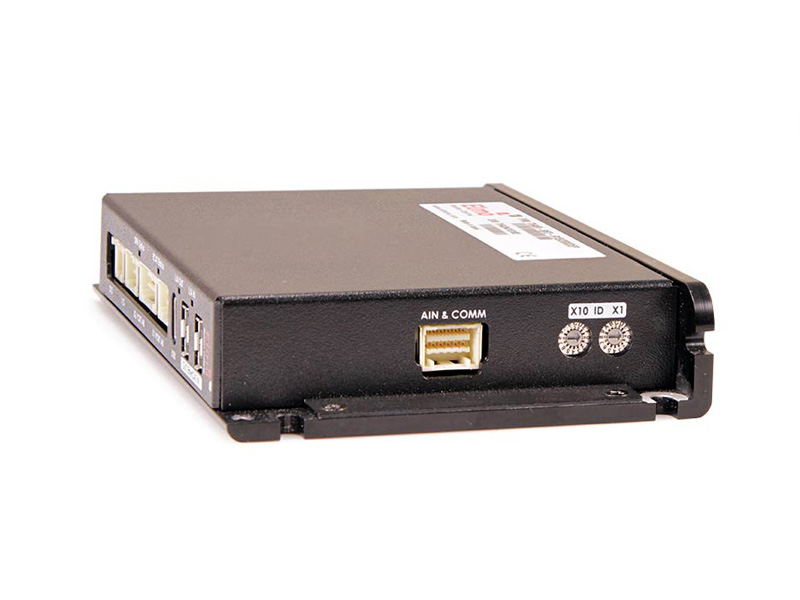

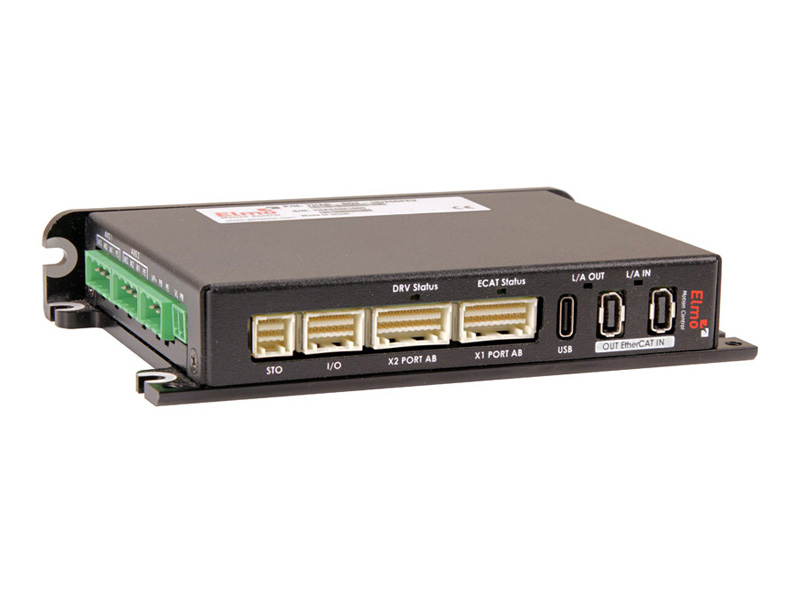

Titanium Falcon驱动器

Introducing the powerful dual-axes servo drives with full functional safety.

The Elmo advanced leading Titanium Line servo drives offer multi-axis performance with incredible power density, providing exceptional intelligent and compact servo drives that are operational within minutes. These servo drives deliver top productivity, Functional Safety, advanced networking, and local intelligence.

Titanium Falcon is available in two variants, one supports currents up to 10A, delivering up to 1.6kW per axis, the other supports currents above 10A with power up to 2.5kW. A top-performance multi-core processor powers the Titanium Falcon 2-Axis. It offers several types of interfaces, including regular and full safe IO.

Titanium Falcon Highlights

GaN – Gallium Nitride MOSFET Switching

Ultra Fast Switching Time (~20 nSec)

Switching Frequency of 100kHz+

Dual Axis Full Functional Safety & FSoE

FSoE / STO

EtherCAT

USB option

Titanium Line Highlights

2 axes in 1 servo drive, only 25% larger than a single axis

Saving design space in the machine

Synchronizing on one device

Full functional safety for both axes

GaN technology

Faster switching time, less energy waste

Separate motions for each axis from one device

Separate configuration designs for each axis from one device
