Elmo驱动器Platinum系列
4轴微型运动控制系统新一代伺服驱动器4X 5000W 伺服驱动器 &4 轴运动控制器
产品详情

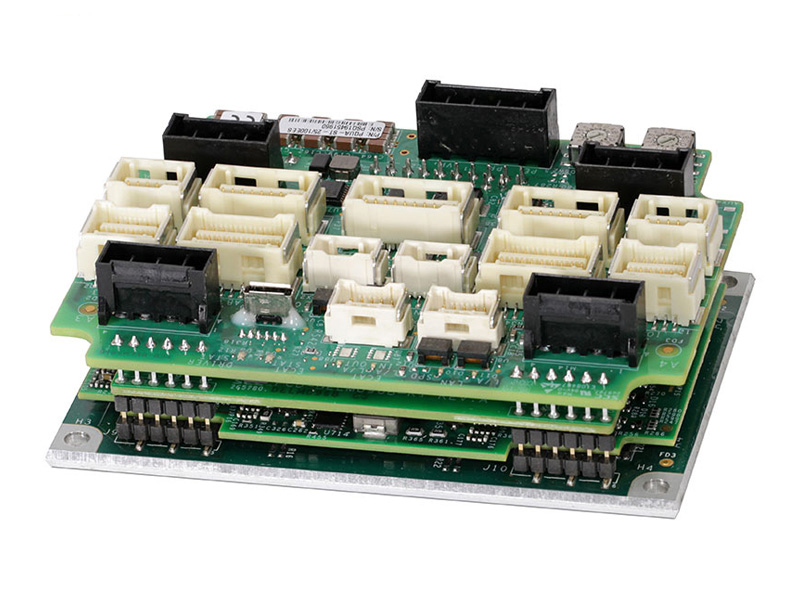

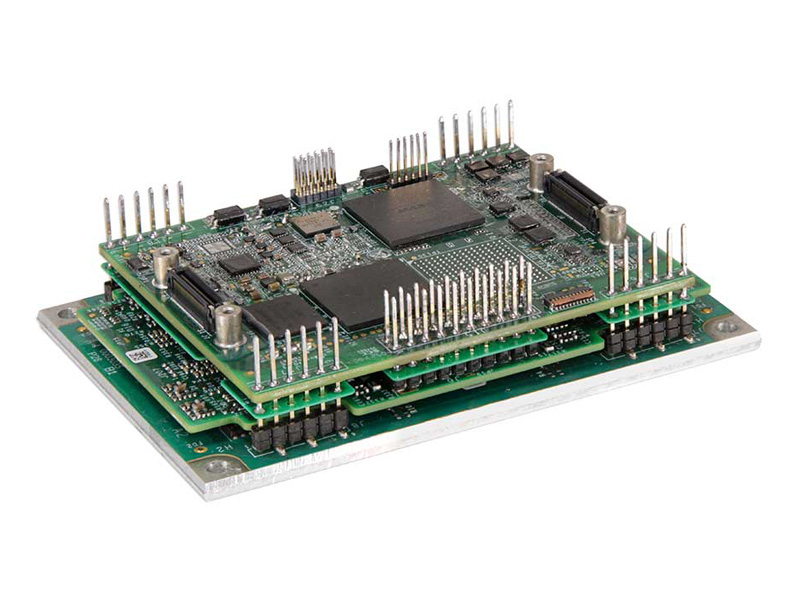

Platinum Quartet 是一种超小型四轴运动控制系统，具有多轴控制、集成式 4 x 5kW 大功率伺服驱动器以及先进的安全和网络功能。
Platinum 系列旨在满足 OEM 设计工程师们对更智能、更小巧、更高效的伺服以及更多功能和易用性的不断变化的需求。Platinum 驱动器旨在通过卓越的运动控制和极高的安全性，帮助机器和机器人制造商制造出更好的机器。
Platinum Quartet产品亮点
4X 5000W 伺服驱动器智能模块
4 轴运动控制器
高精度伺服控制
先进的安全功能（STO）
丰富的 I/O 支持
创新的Platinum系列核心
超快 EtherCAT 网络连接
Platinum系列亮点
同类产品中极佳的伺服性能
世界上最小的具有高级安全功能的伺服驱动器之一
更高的带宽、更快的应速度、更强的线性度和更佳的控制分辨率
超高效 EtherCAT，周期可低至 100us，同步性高，抖动可忽略不计，延迟几乎为零
新增反馈支持：最多可同时支持三个反馈或两个绝对反馈
处理能力强，内存资源大，可实现更好的控制、增强的处理和实时记录
| Feature | Units | 1/100 | 3/100 | 6/100 | 10/100 | 15/100 | 25/100 | P50/100 |
| Minimum supply voltage | VDC | 10 | ||||||
| Nominal supply voltage | VDC | 85 | ||||||
| Maximum supply voltage | VDC | 95 | ||||||
| Maximum continuous power output | W | 70 | 220 | 440 | 735 | 1100 | 2000 | 2000 |
| Efficiency at rated power (at nominal conditions) | % | > 99 | ||||||
| Maximum output voltage | Up to 96% of DC bus voltage | |||||||
| Amplitude sinusoidal/DC continuous current | A | 1 | 3 | 6 | 10 | 15 | 25 | 25 |
| Sinusoidal continuous RMS current limit (Ic) | A | 0.7 | 2.1 | 4.2 | 7.1 | 10 | 17.7 | 17.7 |
Peak current limit | A | 2 x Ic | ||||||
Peak Time | Secs | Standard 3secs | Up to 30secs | |||||
| Feature | Units | 3/200 | 6/200 | 10/200 |
| Minimum supply voltage | VDC | 20 | ||
| Nominal supply voltage | VDC | 170 | ||
| Maximum supply voltage | VDC | 195 | ||
| Maximum continuous power output | W | 440 | 880 | 1450 |
| Efficiency at rated power (at nominal conditions) | % | > 99 | ||
| Maximum output voltage | Up to 96% of DC bus voltage | |||
| Amplitude sinusoidal/DC continuous current | A | 1 | 6 | 10 |
| Sinusoidal continuous RMS current limit (Ic) | A | 2.1 | 4.2 | 7.1 |
| Peak current limit | A | 2 x Ic | ||
| Feature | Units | R15/200 | R35/200 |
| Minimum supply voltage | VDC | 20 | |
| Nominal supply voltage | VDC | 170 | |
| Maximum supply voltage | VDC | 195 | |
| Maximum continuous power output | W | 2200 | 5100 |
| Efficiency at rated power (at nominal conditions) | % | > 99 | |
| Maximum output voltage | Up to 96% of DC bus voltage | ||
| Amplitude sinusoidal/DC continuous current | A | 15 | 35 |
| Sinusoidal continuous RMS current limit (Ic) | A | 10.6 | 24.8 |
| Peak current limit | A | Ic | |
Control Supply
| Feature | Units | Units | Details |
| Control supply input voltage | V | Isolated DC source: 14 to 95 | |
24V Control supply input power consumption | Without encoder | W | ≤4 |
With 4 x 300mA encoders (1.2A@5VE) | W | ≤11.5 | |
Encoder Supply
| Feature | Details |
| 5V supply | 5V ±5% Up to 1.2A |
