Elmo驱动器Platinum系列
全新一代Platinum伺服驱动器，为步进电机设计带整合功能安全性，快速接口板最高 25A/100V & 9A/200V
产品详情
Platinum Solo Bell系列是体积小巧的数字伺服驱动器，设计用于步进电机。 Platinum Solo bell 提供卓越伺服性能，超快的网络，增强的处理能力和丰富的反馈支持。
这款体积为66.0 x 58.5 x 28.4 mm伺服驱动器，专为步进电机设计，以功能安全支持著称的直流伺服驱动器，通过EtherCAT（FSoE）认证，整合式安全I/Os（可选）。
Platinum系列设计用于满足OEM设计者们日益增长的对更智能，更小巧，更快速，更高功能性和易操作的伺服驱动器的需求。Platinum系列伺服驱动器旨在帮助机器和机器人制造商通过高级的运动控制和至高安全性来打造更好的设备。
Platinum Solo Bell亮点
下一代
“即用式”伺服
驱动“任何电机”
经认证
功能安全
高达 25A/100V、9A/200V
高达 2kW 的持续功率
Platinum系列亮点
以功能安全性著称的伺服驱动器，通过EtherCAT (FSoE)认证
更快的数据处理能力，增强的处理能力，更高带宽和精度
增加了控制算法
更快速的循环时间，更高协同性，抖动几乎可忽略不计，近乎零延迟。
更大内存，实时记录
增加了反馈支持：最多三种反馈，或2种绝对值反馈

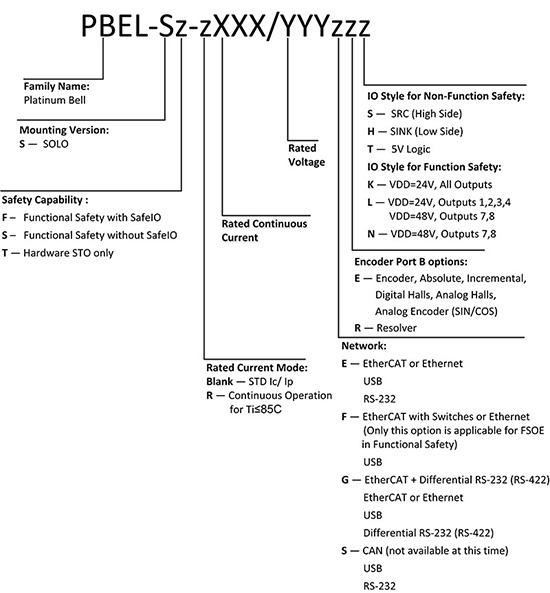

| Feature | Units | 1/100 | 2.5/100 | 5/100 | 10/100 | 15/100 | 20/100 | 25/100 |
| Minimum supply voltage | VDC | 10 | ||||||
| Nominal supply voltage | VDC | 85 | ||||||
| Maximum supply voltage | VDC | 95 | ||||||
| Maximum continuous power output | W | 80 | 200 | 400 | 800 | 1200 | 1600 | 2000 |
|
Efficiency at rated power (at nominal conditions) |
% | > 99 | ||||||
| Maximum output voltage | Up to 95% of DC bus voltage | |||||||
|
Amplitude sinusoidal/ DC continuous current |
A | 1.0 | 2.5 | 5 | 10 | 15 | 20 | 25 |
|
Sinusoidal continuous RMS current limit (Ic) |
A |
0.7 |
1.8 |
3.5 |
7 |
10.6 |
14.1 |
17.5 |
|
Peak current limit |
A |
2 x Ic | ||||||
| Feature | Units | 3/200 | 6/200 | 9/200 |
| Minimum supply voltage | VDC | 20 | ||
| Nominal supply voltage | VDC | 170 | ||
| Maximum supply voltage | VDC | 195 | ||
| Maximum continuous power output | W | 480 | 960 | 1450 |
| Efficiency at rated power (at nominal conditions) | % | > 99 | ||
| Maximum output voltage | Up to 95% of DC bus voltage | |||
| Amplitude sinusoidal/DC continuous current | A | 3 | 6 | 9 |
| Sinusoidal continuous RMS current limit (Ic) |
A |
2.1 |
4.2 |
6.3 |
| Peak current limit |
A |
2 x Ic | ||
Control Supply
| Feature | Units | Units | Details |
| Control supply for input voltage where the Safety Capability is F, S | V | Isolated DC source: 12 to 60 | |
| Control supply for input voltage where the Safety Capability is O | V | Isolated DC Source: 12 to 95 | |
| 24V Control supply input power consumption | Without encoder | W | ≤4 |
| With encoder up to 400mA@5V | W | ≤6 | |
|
For Safety Capability F only With encoder up to 300mA@11V |
W | ≤7 | |
Encoder Supply
|
Feature |
Details |
|
5V supply |
5V Nominal, 4.75V÷5.25V up to 400mA |
|
11V supply only with Safety Capability: F |
11V Nominal, 10.6V÷11.5V up to 300mA |
