Elmo驱动器Platinum系列
New Era In Servo ControlCertified Functional SafetyComposer2, Software in the Loop Powerful Drive’s CapabilityDesigned, quali
产品详情

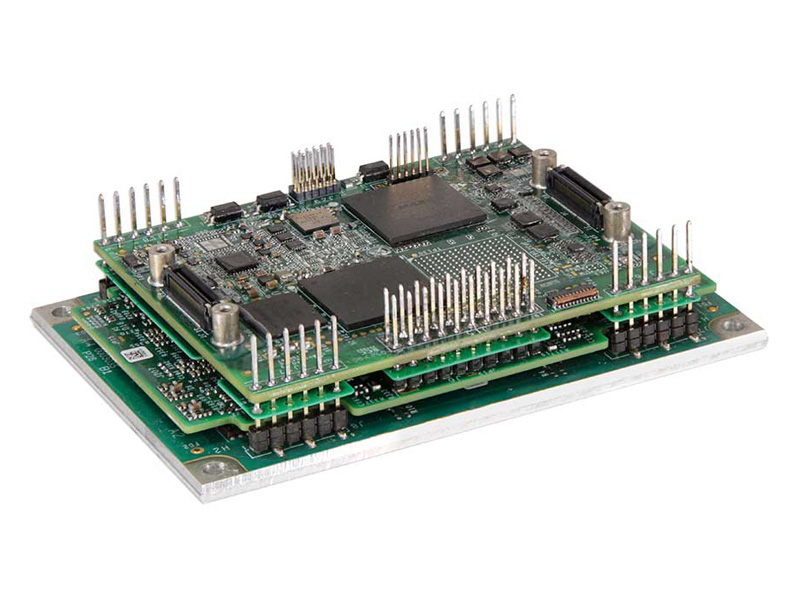

The Platinum Bee Quartet is an integrated solution delivering up to 2000 W of continuous power in a compact package (95.0 x 65.0 x 22.0 mm or 3.74″ x 2.56″ x 0.87″).
This advanced multi-axis controller provides top performance, , advanced networking as well as a fully featured motion controller and local intelligence.
The ExtrIQ Platinum series was designed to meet the evolving needs of the extreme environmental motion control solutions. The Platinum Bee Quad exhibits smarter, smaller, faster servo, with higher functionality and ease-of-use. The ExtrIQ Platinum drives aim to assist any Harsh Environment Servo and Motion application.
Platinum Bee Quartet Highlights
Ready for the Extreme, -Ultra-small, most powerful 4 axes motion and servo controller4X 5000W Servo Drive Intelligent Module
High Precision Servo Control
Advanced Safety Functionality (STO)
Rich I/O Support
Innovative Platinum line core
Ultra-Fast EtherCAT Networking
STO IEC 61800-5-2 (SIL-3, Cat4 PL-e)
Platinum Series Highlights
Best-In-Class Motion & servo performance
Higher bandwidth, faster response, enhanced linearity and highest control resolutions
Ultra-efficient EtherCAT with cycling down to 100us, high synchronization with negligible jitters and near zero latency
Added feedback support: up to three simultaneously, or two absolute feedbacks
Composer2, Proprietary Drive Level SIL( Software In The Loop), allows running customer’s control algorithms within the drive’s real-time
High processing power with large memory resources for better control, enhanced processing, and real time recording
| Feature | Units | 1/100 | 3/100 | 6/100 | 10/100 | 15/100 | 25/100 | P50/100 |
| Minimum supply voltage | VDC | 10 | ||||||
| Nominal supply voltage | VDC | 85 | ||||||
| Maximum supply voltage | VDC | 95 | ||||||
| Maximum continuous power output | W | 70 | 220 | 440 | 735 | 1100 | 2000 | 2000 |
Efficiency at rated power (at nominal conditions) | % | > 99 | ||||||
| Maximum output voltage | Up to 96% of DC bus voltage | |||||||
| Amplitude sinusoidal/DC continuous current | A | 1 | 3 | 6 | 10 | 15 | 25 | 25 |
Sinusoidal continuous RMS current limit (Ic) | A | 0.7 | 2.1 | 4.2 | 7.1 | 10 | 17.7 | 17.7 |
Peak current limit | A | 2 x Ic | ||||||
Peak Time | Secs | Standard 3secs | Up to 30secs | |||||
| Feature | Units | 3/200 | 6/200 | 10/200 |
| Minimum supply voltage | VDC | 20 | ||
| Nominal supply voltage | VDC | 170 | ||
| Maximum supply voltage | VDC | 195 | ||
| Maximum continuous power output | W | 440 | 880 | 1450 |
Efficiency at rated power (at nominal conditions) | % | > 99 | ||
| Maximum output voltage | Up to 96% of DC bus voltage | |||
| Amplitude sinusoidal/DC continuous current | A | 1 | 6 | 10 |
| Sinusoidal continuous RMS current limit (Ic) | A | 2.1 | 4.2 | 7.1 |
Peak current limit | A | 2 x Ic | ||
| Feature | Units | R15/200 | R35/200 |
| Minimum supply voltage | VDC | 20 | |
| Nominal supply voltage | VDC | 170 | |
| Maximum supply voltage | VDC | 195 | |
| Maximum continuous power output | W | 2200 | 5100 |
Efficiency at rated power (at nominal conditions) | % | > 99 | |
| Maximum output voltage | Up to 96% of DC bus voltage | ||
| Amplitude sinusoidal/DC continuous current | A | 15 | 35 |
| Sinusoidal continuous RMS current limit (Ic) | A | 10.6 | 24.8 |
| Peak current limit | A | Ic | |
Control Supply
| Feature | Units | Units | Details |
Control supply input voltage | V | Isolated DC source: 14 to 95V | |
24V Control supply input power consumption | Without encoder | W | ≤4 |
With 4 x 300mA encoders (1.2A@5VE) | W | ≤11.5 |
Encoder Supply
Feature | Details |
| 5V supply | 5V ±5% up to 1.2A |
