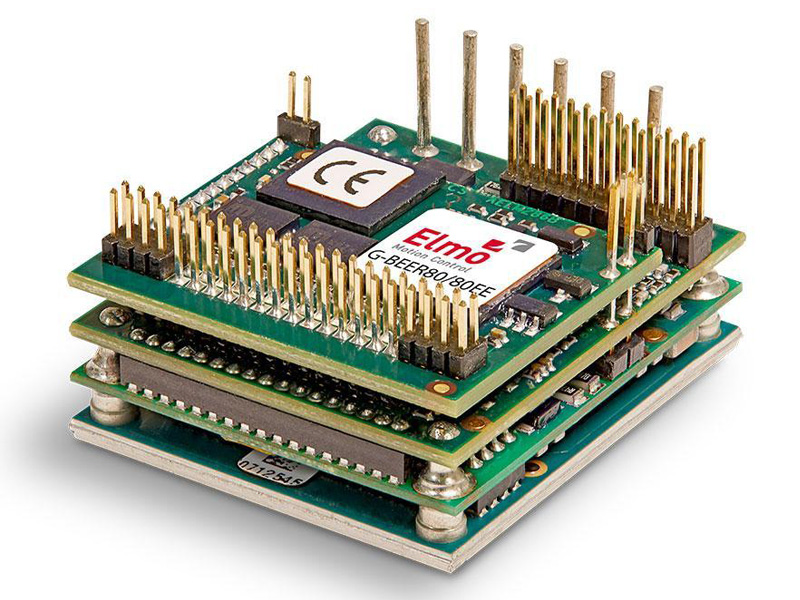

-40C to+70C, Vibrations up to 14GRMSUltra Small Servo Drive, up to 5500WDesigned, qualified, verified, manufactured and teste
产品详情
Gold Bee Highlights:
Ready for the Extreme, -40 °C to +70 °C, Vibrations up to 14 GRMS
High Power Density, over 5500 of “Qualitative” Watts
Ultra High Current , 50 A at 100 VDC
Advanced Servo capabilities for Best results with any load
Extremely High Bandwidth, Current Loop > 4.5 KHz
Fast and accurate response time
Wide current loop dynamic range of 2000:1 (Stable & Smooth at 0.025 A with a 50 A Drive)
Sample time as low as 50 μs, for current, velocity and position
Smallest to comply and be certified with “Safe Torque Off” (STO), SIL3, Level E
Durable to endure any environment
Complies to severe Safety, EMC and Environmental STDS
Feature | Units | 30/60 | 1/100 | 3/100 | 6/100 | 10/100 | 15/100 | 25/100 | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
Minimum supply voltage | VDC | 8 | 10 | ||||||||
Nominal supply voltage | VDC | 48 | 85 | ||||||||
Maximum supply voltage | VDC | 55 | 95 | ||||||||
Maximum continuous power output | W | 1370 | 80 | 235 | 470 | 800 | 1125 | 2000 | |||
Efficiency at rated power | % | > 99 | |||||||||
Maximum output voltage | Up to 96% of DC bus voltage | ||||||||||
Ic, Amplitude sinusoidal/DC | A | 30 | 1 | 3 | 6 | 10 | 15 | 25 | |||
Sinusoidal continuous RMS current limit (Ic) | A | 21 | 0.7 | 2.1 | 4.2 | 7.1 | 10 | 17.7 | |||
Peak current limit | A | 2 x Ic | |||||||||
Feature | Units | 3/200 | 6/200 | 10/200 | |
|---|---|---|---|---|---|
Minimum supply voltage | VDC | 20 | |||
Nominal supply voltage | VDC | 170 | |||
Maximum supply voltage | VDC | 195 | |||
Maximum continuous power output | W | 485 | 975 | 1650 | |
Efficiency at rated power (at nominal conditions) | % | > 99 | |||
Maximum output voltage | Up to 96% of DC bus voltage | ||||
Ic, Amplitude sinusoidal/DC continuous current | A | 3 | 6 | 10 | |
Sinusoidal continuous RMS current limit (Ic) | A | 2.1 | 4.2 | 7.1 | |
Peak current limit | A | 2 x Ic | |||
Feature | Units | R50/60 | R80/80 | R50/100 | R70/100 | R45/150 | R15/200 |
|---|---|---|---|---|---|---|---|
Minimum supply voltage | VDC | 8 | 10 | 10 | 10 | 12 | 20 |
Nominal supply voltage | VDC | 48 | 65 | 85 | 85 | 115 | 170 |
Maximum supply voltage | VDC | 55 | 75 | 95 | 95 | 135 | 195 |
Maximum continuous | kW | 2.3 | 5 | 4.0 | 5.6 | 5 | 2.5 |
Efficiency at rated power | % | > 99 | |||||
Maximum output voltage | Up to 96% of DC bus voltage | ||||||
Amplitude sinusoidal/DC continuous current | A | 50 | 80 | 50 | 70 | 45 | 15 |
Sinusoidal continuous RMS current limit (Ic) | A | 35.3 | 56.5 | 35.3 | 49.5 | 32 | 10.6 |
